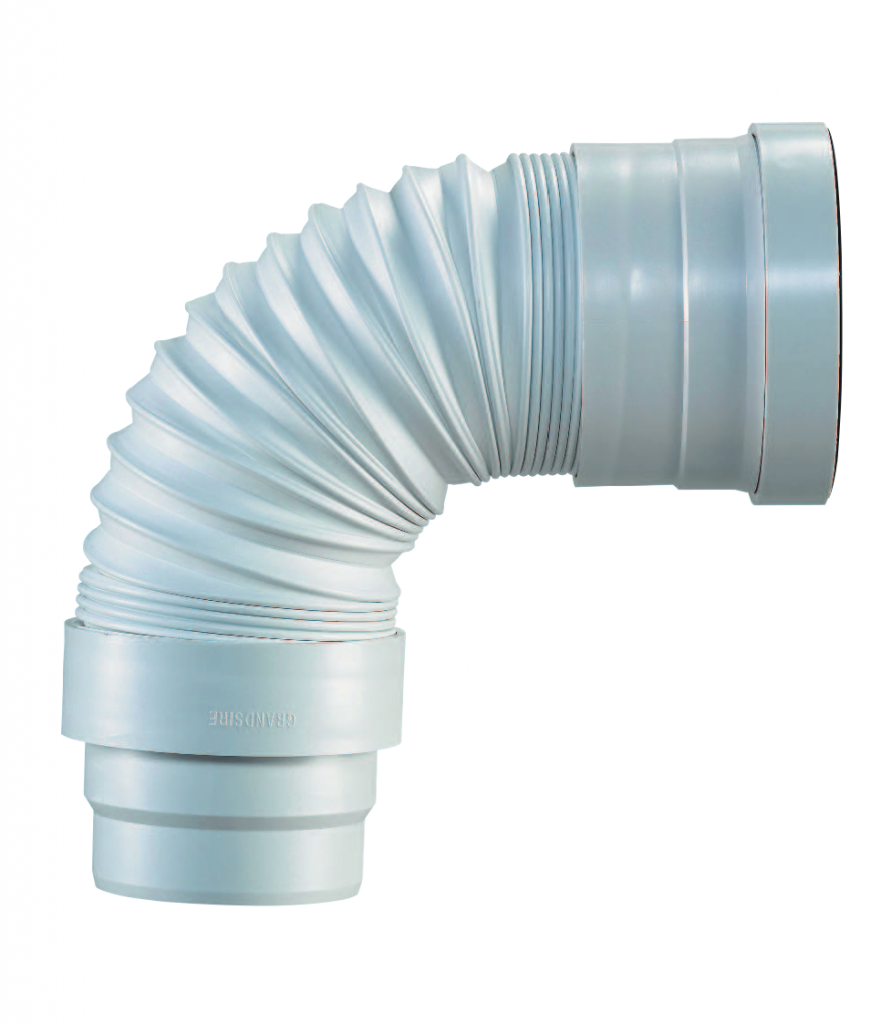

Flexible toilet pan connector, watertight

• Compressible / extensible / directional control
• «Ready to use», adjustable to suit any setup
• Length 0.55 m expanded
• With stepped male connector to be glued onto Ø100 mm PVC pipes
• With Ø85/107 mm lip seal connector for toilet bowl outlet
(can be dismantled)

Tableau de description

Flexible pipe, non-watertight

Photos-p1.4.png gg

• Can be re-cut
• Connectors can be dismantled to cut to a
suitable length for installation.

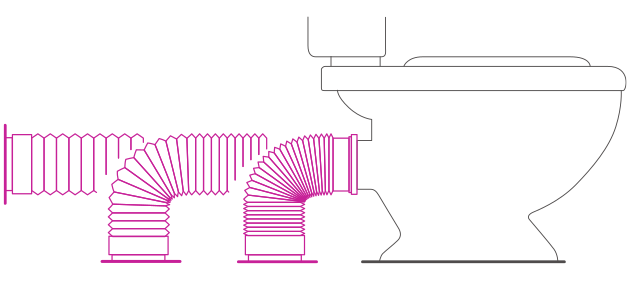

• Prevents: – Torque on the pipe
– The toilet bowl outlet washer slipping
– Reverse gradient.

Tableau de description

Flexible finned toilet pan connector

Photos-p-1.5.png pipe

• Compressible / extensible / directional control
• «Ready to use», adjustable to suit any setup
• Length 0.40 m expanded
• With finned pipe on male connector
• No gluing / can be dismantled
• Ø 100

Tableau de description

Flexible elbow pipe for gluing

Photos-p-1.5.png pioe 2

• Compressible / extensible / directional control • «Ready to use», adjustable
to suit any setup
• Length 0.40 m expanded
• With stepped male connector for gluing
• Ø 100

Tableau de description

Universal toilet pan connector

The multifunctional Ø40 plug becomes a connector for Ø32 hose (the base can easily be perforated using a screwdriver)

A single product for many connection solutions:

• 1 single stock item with or without branch connection
• An inspection hole
• 1/4 turn plug: easy to screw in and without tools
• Guaranteed watertight
• Possibility of direct connection with Racorapid Ø32 after installation
• Possibility of connection with Ø40 PVC pipe to glue on after installation
• Compact branch connection allowing maximum gradient

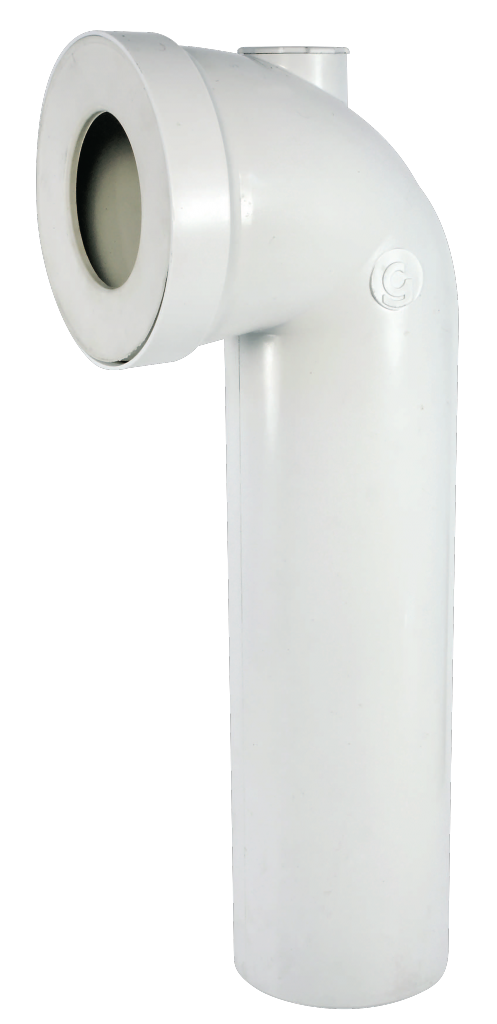

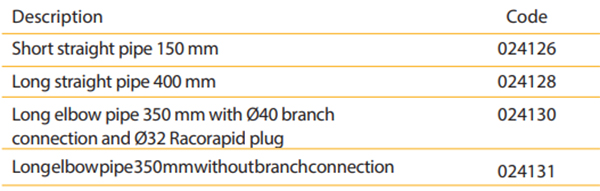

Elbow for Ø 100 mm PVC pipe

Coude pour canalisation PVC Ø 100 mm

• With Ø40 branch connection and Ø32 Racorapid plug

Tableau de description

PVC pipe extensions for Ø 100 mm connector

Tableau de description

Flexible Ø 100 pan connector

• Flexible polyethylene
• Watertight with bendable lip

Tableau de description

Ø 100 directional control pipe

024115-pos5

• The 45° outlet elbow swivels in all directions
• Centre distance varies from 50 to 100 mm

Tableau de description

2 interlocking sections that swivel for several options

Pan connector

Manchon
Tableau de description

Ring with seal

Bague avec joint
Tableau de description

Seal only

Joint seul.png gg
Tableau de description
